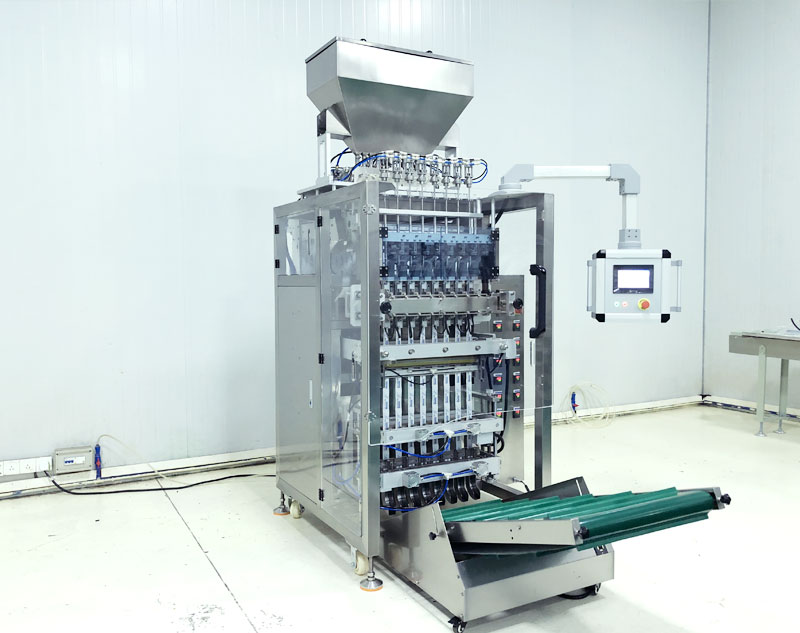

Multi row three side sealing liquid packaging machine

Product model：CY300Y/CY600Y/CY900Y

Full automatic multi row three side sealing liquid packaging machine is applicable to the full-automatic soft packaging
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc

We can help you find the goods you want by phone

Consult immediately 18676947539
Machine parameters
    Model CY300Y CY600Y CY900Y
    Lanes number 2-4 lanes 3-10 lanes 4-16 lanes
Capacity  25--40 /  Max.25-40cycle/min/lane
Bag size L 50-180mm  W:17-75mm L::50-180mm  W:17-100mm L::50-180mm  W:17-110mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1. Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump
Sealing type  3 side sealing 3 side sealing  3 side sealing
Cutting type 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg
Machine details

Electric box

Slitting system

Horizontal and vertical sealing system (1)

Horizontal and vertical sealing system (2)

Bucket

Bucket 1

Barrel and piston pump metering system

Machine video introduction
Effect of packaging sample bag
