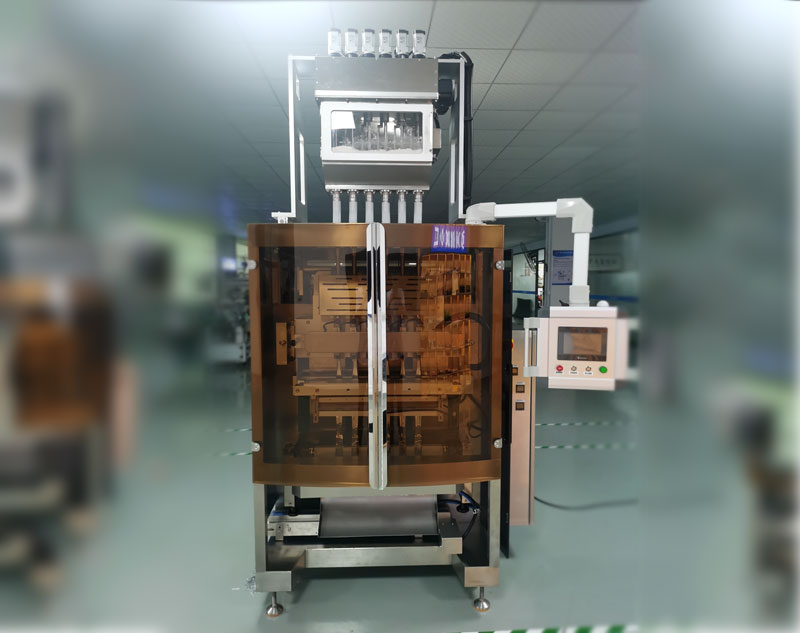

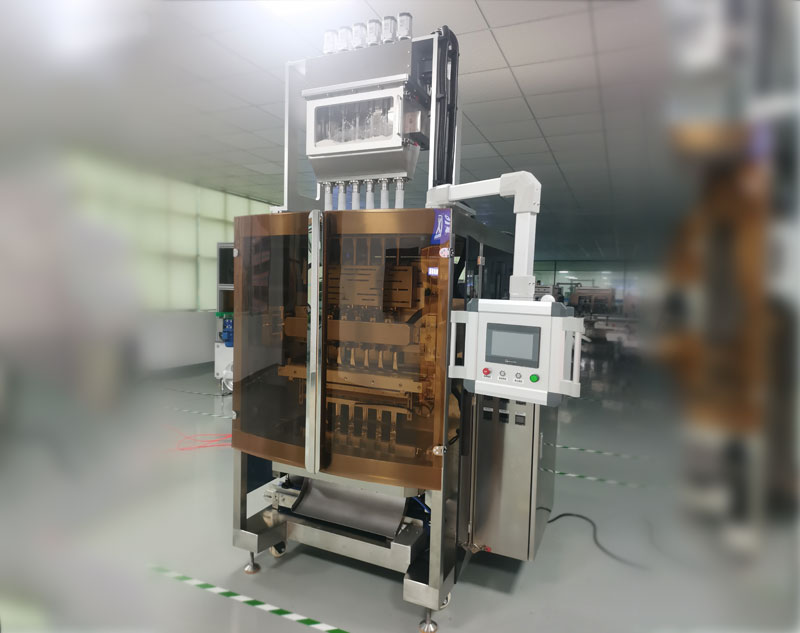

Multi row back sealed powder packaging

Product model锛欳Y300BF/CY600BF/CY900BF

The automatic multi row back sealing powder packaging machine is applicable to the automatic packaging of powder powder or fine powder in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: solid beverage, meal substitute powder, nutritional powder, flour, starch, food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, cocoa powder, health tea powder, glucose powder, soda powder, papaya root powder, etc

We can help you find the goods you want by phone

Consult immediately 18676947539

Machine parameters

Model	CY300BF	CY600BF		CY900BF
Lanes number	2-4 lanes	3-10 lanes		4-16 lane
Capacity	20--40 / Max.20-40cycle/min/lane
Bag size	L 50-180mm W:20-70mm	L::50-180mm W:20-95mm		L::50-180mm W:20-105mm
Film width&thickness	Max.300mm,0.07--0.1mm	Max.600mm,0.07--0.1mm		Max.900mm,0.07--0.1mm
Measuring Method	1.long auger;2.short auger;3.short auger with cup
Sealing type	Back sealing/stick bag	Back sealing/stick bag		Back sealing/stick bag
Cutting type	1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply	1N+PE/50HZ/AC220V/380V/3.5kw	1N+PE/50HZ/AC220V/380V/5.5kw		1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption	0.8 MPA 0.8m3/min		0.8 MPA 0.8m3/min	0.8 MPA 0.8m3/min
Dimension	13859182005mm	168513002005mm		170016002500mm
Weight	400kg	600kg		950kg
